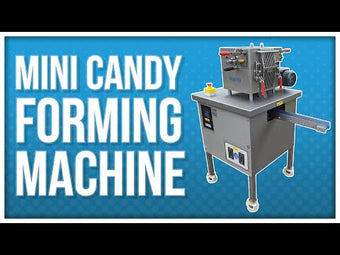

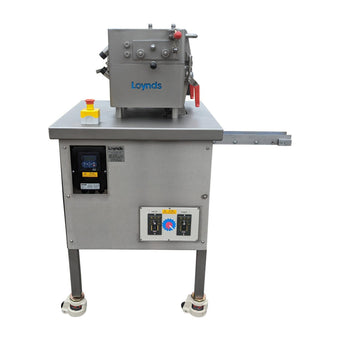

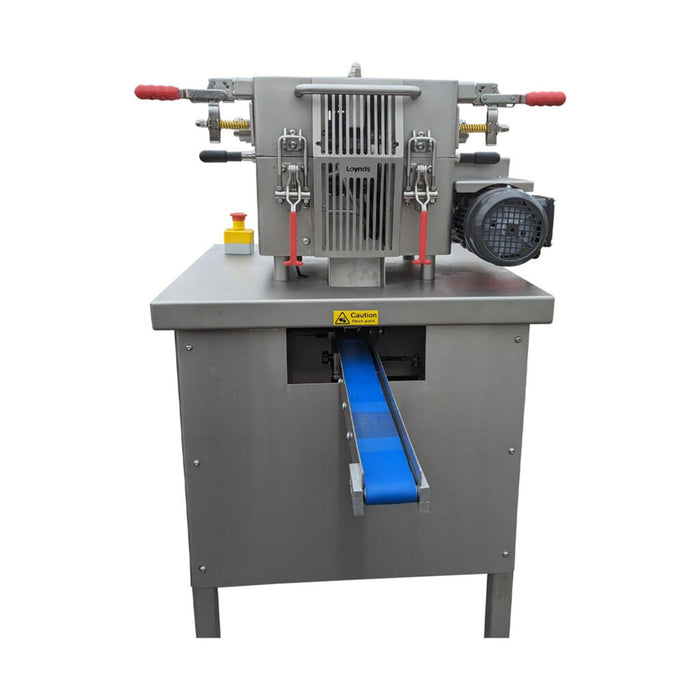

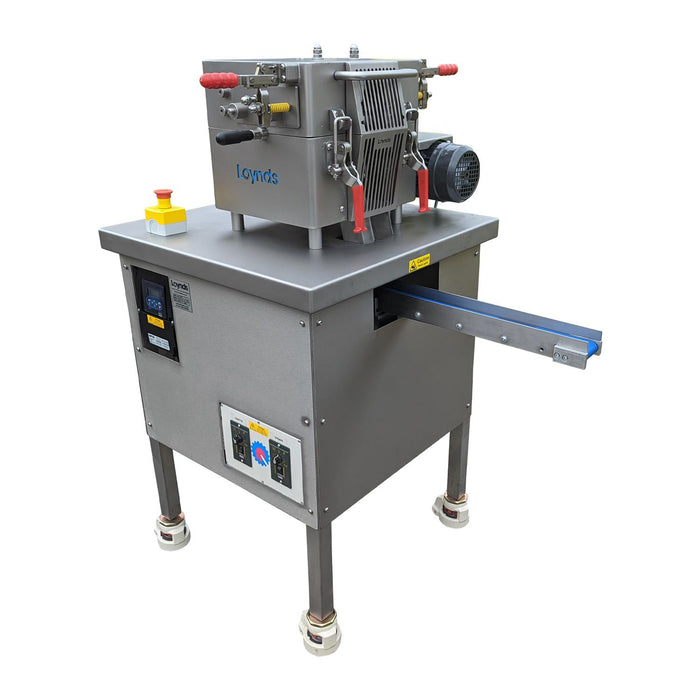

The Loynds Mini Rotary Die Candy Forming Machine (MF01) is engineered for artisan confectioners and small to medium volume candy manufacturers. With a capacity of up to 125kg of candies per hour, this compact rotary die candy machine combines precision, efficiency, and durability in one space-saving design.
Key Benefits
- Compact footprint, perfect for limited production space
- High-precision rotary die forming for consistent candy shapes
- Up to 125kg/hour production capacity
- Quick-release clamping system for easy die changes and cleaning
- Durable full stainless steel construction for hygiene and longevity
- Supplied with video manuals for easy setup and operation
Efficient and Hygienic Design
Constructed entirely from food-grade stainless steel, the MF01 offers superior durability and hygiene. The machine is fitted with an emergency stop button and electronic guard switch for safety. Its stainless steel build ensures easy cleaning and reliable long-term operation.
Optimised Production
The MF01 is capable of producing up to 125kg of candies per hour, depending on candy size. Speed is fully adjustable using inverter control, giving operators maximum flexibility. A built-in oscillating outfeed conveyor ensures candies are evenly spread onto a cooling conveyor for consistent results.
Simple Operation with Quick Die Changeovers

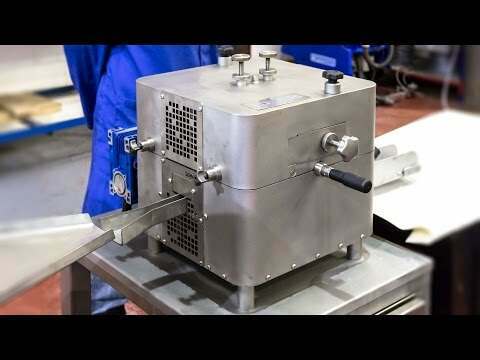

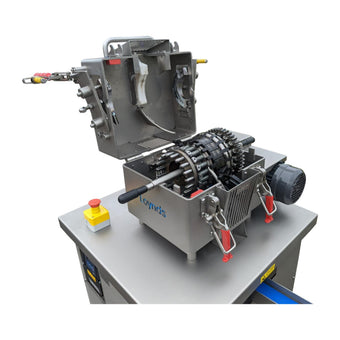

The rotary die system is designed for ease of use. A quick-release clamping mechanism allows the die to be removed quickly for cleaning or changeover. The machine is supplied with one die set tailored to your product specifications, with additional dies available on request.
How It Works
- Load candy into a batch roller to form a cone
- Feed the cone into a rope sizer to create a uniform candy rope
- Feed the rope into the MF01 Mini Rotary Die Candy Forming Machine
- The rotary die cuts and forms candies into the desired shape
- The oscillating outfeed conveyor distributes candies evenly onto a cooling conveyor
Technical Specifications
-
Capacity: Up to 125kg/hour
-

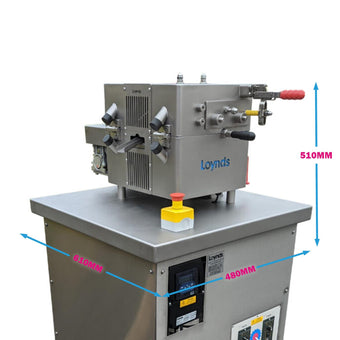

Dimensions: (L)1100mm x (W)700mm x (H)1350mm
-
Weight: 200kg
-
Power: 1kW
-
Material: Full stainless steel construction
-
Products: Hard candy
Applications / Use Cases
- Artisan confectionery manufacturing
- Small to medium candy factories
- Recipe development kitchens
- Training and demonstration environments
Installation and Support
The MF01 is supplied with detailed video manuals covering setup, operation, cleaning, and essential maintenance. Optional installation, training, and recipe development support packages are also available.
Related Equipment
FAQs
What is the production capacity of the MF01?
The machine can produce up to 125kg of candies per hour, depending on the size of the sweets.
Can the machine work with other equipment?
Yes, it integrates with Loynds batch rollers, rope sizers, and cooling conveyors, as well as equipment from other manufacturers.
How easy is it to change the dies?
The quick-release clamping system allows dies to be removed in minutes for cleaning or changeover.
Does it come with a die set?
Yes, the MF01 is supplied with one die set built to your specifications. Additional dies can be ordered.
Is training available?
Yes, optional training and recipe development support are available to help operators get the best from the machine.
